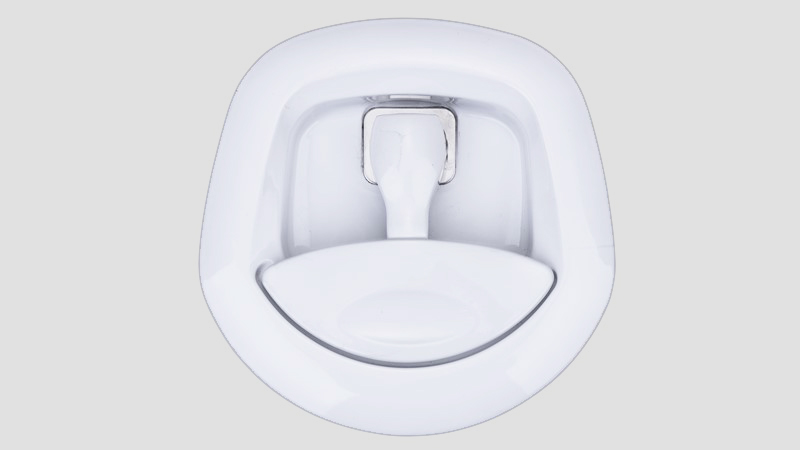

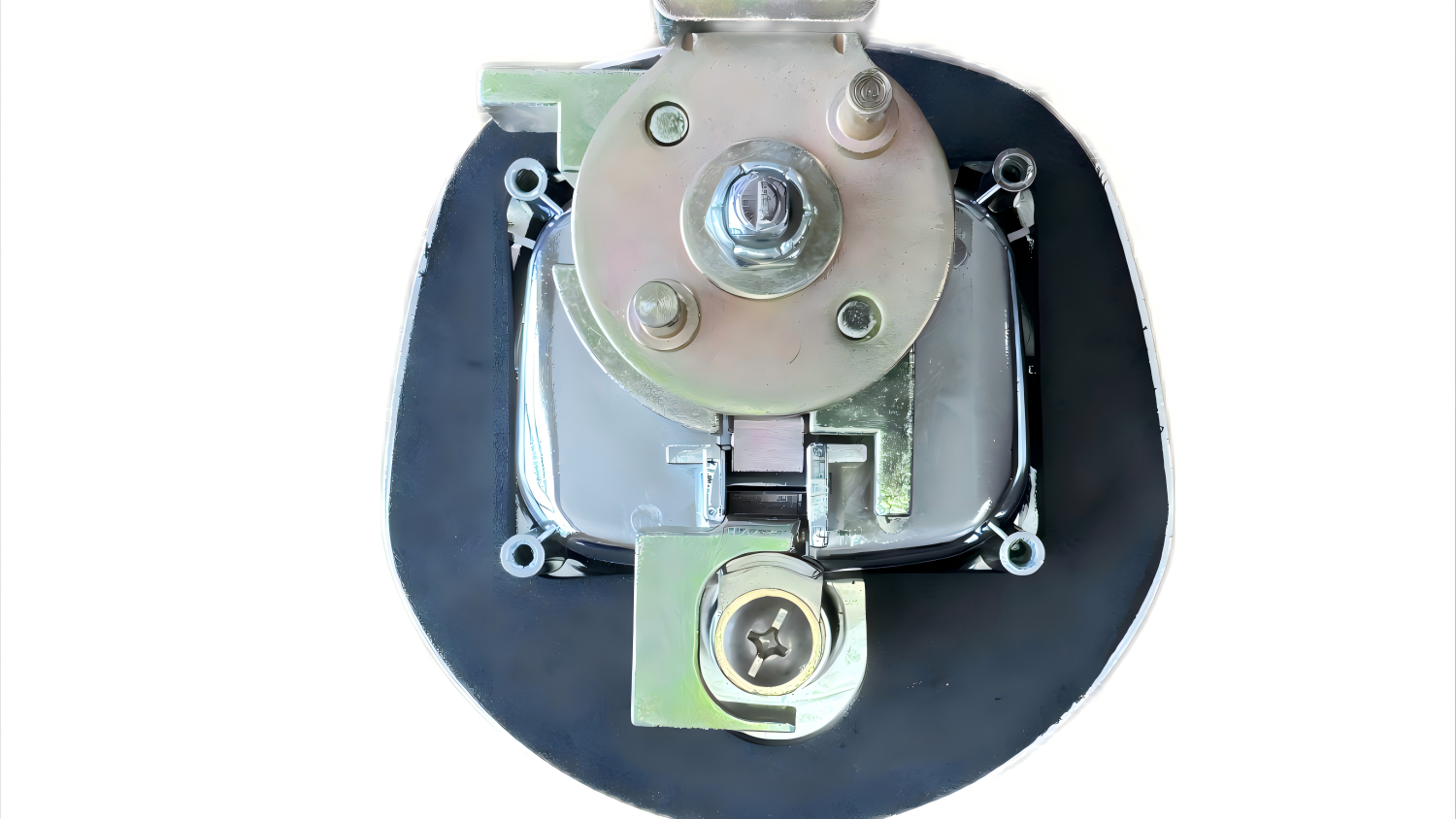

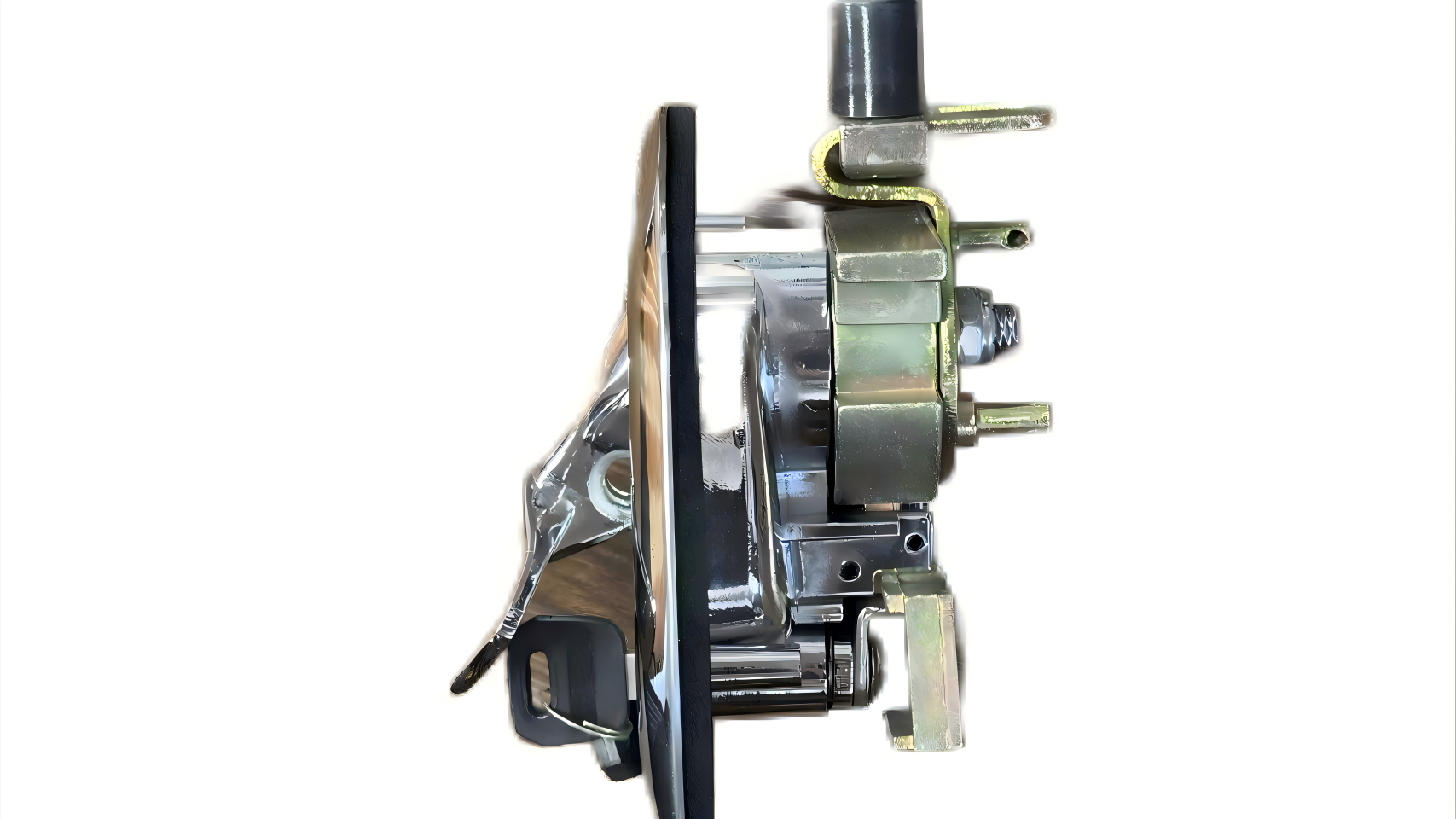

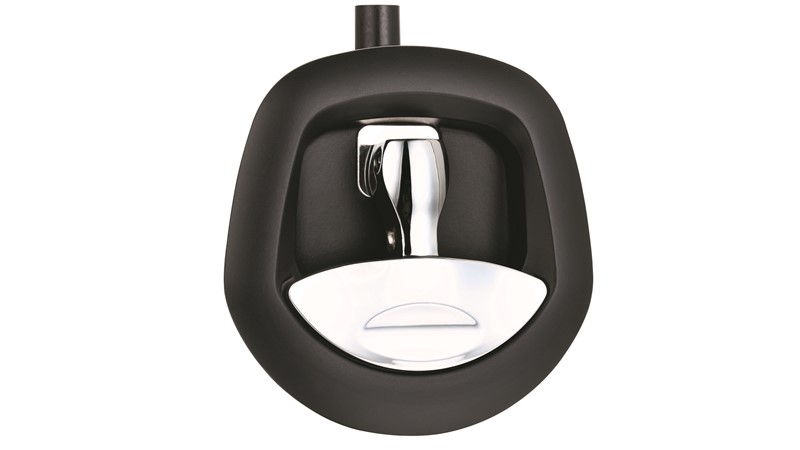

Whale tail T-folding handle lock -19102

Introduction

The whale tail lock is a durable and versatile component commonly used for securing doors and compartments across a wide range of industrial and transportation equipment. It is particularly suited for aluminum toolboxes installed on special trucks, door locks for off-road modified trailers, large engineering vehicles, and container trucks. In recent years, its application has expanded to refrigerated transport vehicles, delivery vans, and commercial service units that require frequent access and high reliability.

Key Features

• Reinforced Structure: Made of precision-cast zinc alloy, providing exceptional mechanical strength and long-term corrosion resistance.
• Weatherproof Design: Suitable for outdoor usage, with optional chroming or powder coating for enhanced protection against elements.
• Security Focused: Features a blade-type lock cylinder that ensures high resistance to tampering and forced unlocking.
• Universal Compatibility: Can be installed on a wide range of panel thicknesses with adjustable H-values between 29–53mm.
• Clean, Minimal Look: Modern industrial design with flush-mount integration for a sleek visual impression.

Product Data

Lock Type	Panel lock
Material	Zinc alloy
Weight (kg)	1.3
Surface Treatment	Powder coating, chroming
Lock Cylinder Type	Blade type

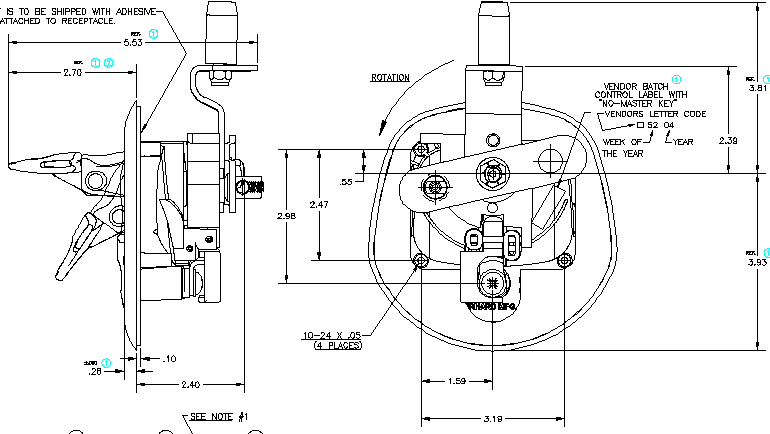

H Value	29–53 mm

Installation Guidance

The whale tail lock is designed for straightforward surface or panel mounting. Installation is fast and reliable with basic tools. Here's how to install:

1. Drill a mounting cutout on the panel according to the lock’s base dimensions.
2. Insert the lock body into the cutout and ensure a snug fit.
3. Secure the lock using the provided mounting hardware (screws or bolts).
4. Connect the latch hook or bar to the internal mechanism and test for proper closure.
5. Optionally, add a rubber gasket to enhance water resistance and vibration damping.

Note: For refrigerated or vibration-prone applications, additional sealing measures are recommended.

Application Scenarios

The whale tail lock is ideal for various transport and equipment sectors:

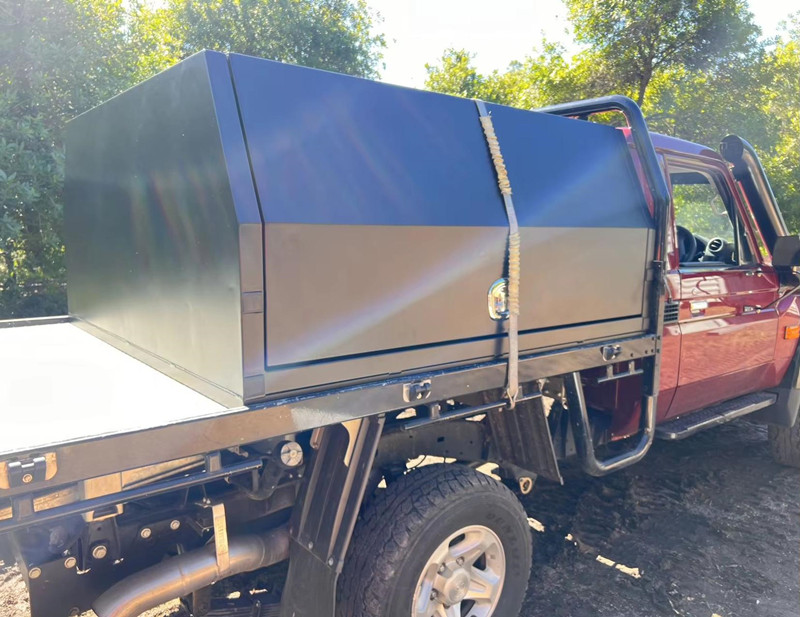

• Aluminum toolbox and storage compartments on trucks
• Construction equipment access panels
• Refrigerated van and cargo trailer doors
• Tool cabinets and mobile workshop vehicles
• Fleet vehicles requiring uniform security systems

Customization Options

We offer multiple ways to tailor the whale tail lock to your needs:

• Finish Choices: Matte black, industrial silver, or custom powder-coated colors
• Keying Options: Keyed alike, keyed different, or master-key systems
• Logo Engraving: Optional laser-etched company logos for branded equipment
• Cylinder Variants: Available in blade, pin-tumbler, or high-security custom cores
• Packaging: Custom packaging with barcodes, labels, and protective foam inserts
